Versatus 60 PRM2136X-D Evaluation Kit

EVK2136X-D

The EVK-PRM2136X provides a platform for comprehensive evaluation of the PRM2136X RF/mmWave transceiver module in Peraso’s Versatus series of module. The EVK-PRM2136X is targeted for enterprise, industrial and consumer applications which demand reliable, low latency, multi-gigabit data rates.

The EVK-PRM2136X utilizes the PRM2136X transceiver module that incorporate antenna arrays which can switch between vertical and horizontal polarizations to match any installation or operational scenario.

The modules are supported by Peraso’s Pro Software and Firmware packages which include features such as fast roaming and the ability to service up to 32 associated and active STA.

Buy

PRODUCT DETAILS

PRM2136X
Status In production
Baseband PRS4601 (802.11ad)
RFIC PRS1145
Antenna Array 8+8 element dual polarized patch
Max EIRP 29 dBm
Antenna Gain 13 dBi
Scan Range ±45° azimuth
±40° elevation
System Interface USB 3.0
Power Tx: 3.2 W
Rx: 2.9 W
OS Support Linux
Windows

APPLICATIONS

  • Enterprise networking
  • Multi-AP and STA networks with fast roaming
  • Untethered AR/VR
  • Factory automation
  • Wireless display

KIT CONTENTS

Item Part Number Description

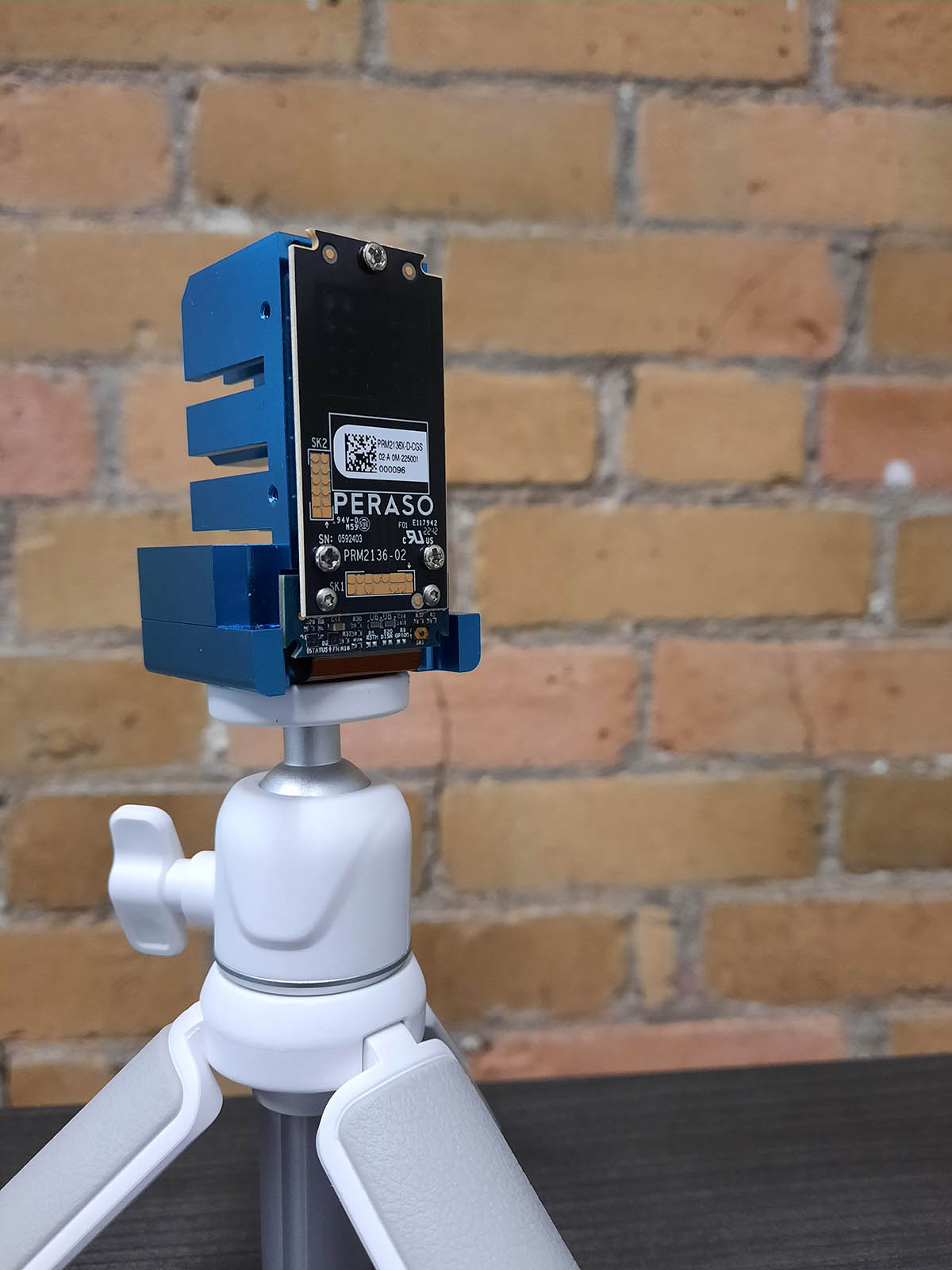

EVB-PRM2136 Box 1 Fully assembled evaluation board. Includes:
  • Perspectus Module
  • Adaptor PCB – PER6145
  • Heatsink with fan
Evaluation Kit Accessories: Box 2
  • AC/DC desktop adapter 5V 20W
  • Power Cord Black (2.15m) North America
  • USB A male to USB Micro B male
Tripod Box 3 Compact and portable tripod for mounting
