The Versatus series of modules are targeted for enterprise, industrial and consumer applications which demand reliable, low latency, multi-gigabit data rates. The modules incorporate antenna arrays which can switch between vertical and horizontal polarizations to match any installation or operational scenario. The modules are supported by Peraso’s Falcon and Pro Software and Firmware package, which include features such as fast roaming and the ability to service up to 32 associated and active STA.
Applications
- Enterprise networking
- Factory automation
- Multi-AP and STA networks with fast roaming
- Wireless Display
- Untethered AR/VR
Hello, my name is Peraso Inc.
FEATURES
- 57-66 GHz, Channels 1-4
- 8 active RF chains
- Wide field-of-view beam-steering range
- Automatic polarization switching
- π/2-BPSK, π/2-QPSK, π/2-16QAM modulations
Hello, my name is Peraso Inc.
Hello, my name is Peraso Inc.
- Total user data capacity > 3.5 Gbps
- Multi-user support up to 32 STA
- Fast roaming between APs
- 0°C to 50°C operation
- Scanned for FCC compliance

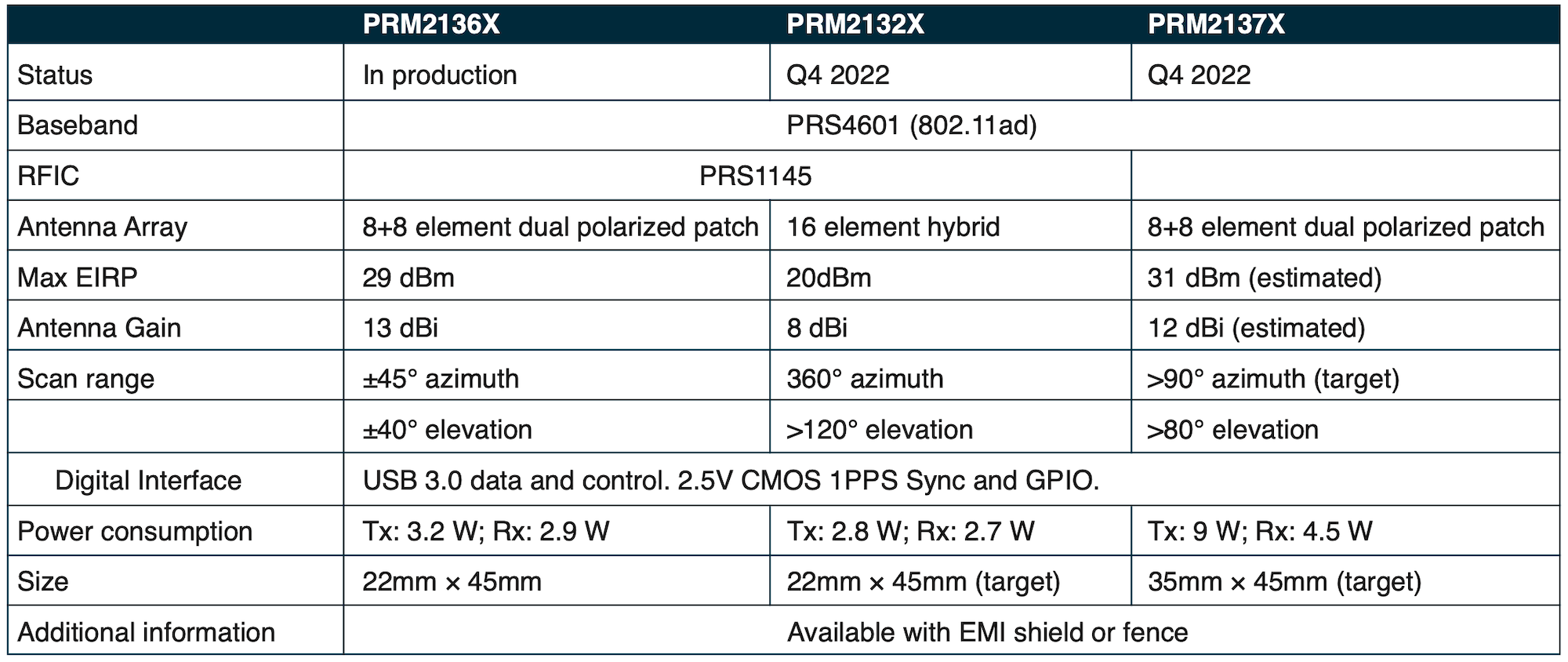

MODULE COMPARISON TABLE
| PRM2136X | PRM2131X | PRM2132X | PRM2138X | |
|---|---|---|---|---|
| Status | In Production | Under Development | Under Development | Under Development |
| Application | AP and direction STA | USB adapter client | USB adapter client | High performance AP |
| Antenna Array | 8+8 dual polarized patch | 6-4-6 end-fire array | 4-4-4-4 end-fire + patch array | 8+8 dual polarized patch |
| Max EIRP | 29 dBm | 23 dBm | 23 dBm | 33 dBm |
| Antenna Gain | 13 dBi | 12 dBi | 12 dBi | 13 dBi |
| Scan Range | ±45° azimuth ±40° elevation |
290° azimuth 0° elevation |
290° azimuth (target) 0° to 120° elevation (target) |
±45° azimuth ±45° elevation |
| Boresight Beamwidth (-3dB) | 40° azimuth 25° elevation |
25° to 35° azimuth 120° elevation |
35° azimuth 60° to 120° elevation |
40° azimuth 25° elevation |
| Maximum Boresight Side Lobe | -15 dB azimuth -15 dB elevation |
-12.5 dB azimuth -13.5 dB elevation |
-14.5 dB azimuth -13.5 dB elevation |
-19 dB azimuth -13.5 dB elevation |
| Coverage (-6dB) | ±60° azimuth ±60° elevation |
±310° azimuth ±120° elevation |
±310° azimuth (target) ±140° elevation (target) |
±70° azimuth ±60° elevation |
| Power consumption | Tx: 2.5 to 3.2 W Rx: 2.4 to 2.9 W Idle: <1 W (<500 mW planned) |
Tx: 2.5 to 3.0 W Rx: 2.4 to 2.8 W Idle: <1 W (<500 mW planned) |
Tx: 2.5 to 2.8 W Rx: 2.4 to 2.8 W Idle: <1 W (<500 mW planned) |
Tx: 5 to 9 W Rx: 3.5 to 4.5 W |
| Size | 22mm × 45mm | 16mm × 51mm (existing) 20mm × 45mm (target) |
20mm × 45mm (target) | 35mm × 45mm (target) |
| Interface | 36-pin Hirose board-to-board | USB 3.0 Type-A Plug | USB 3.1 Type-C Plug | 36-pin Hirose board-to-board |
| Product Image |  |
 |
|
|
| Downloads | PRM2136X Product Brief | Coming soon | Coming soon | Coming soon |
